Accessories

Partition
Wide range of custom-made partition walls available:-
Specifications:-
Thicknesses available:
25mm - 55mm - 85mm
Insulation panel type:
Extruded Polystyrene (XPS)
Dimension and weights:
All possible dimensions (lengths - heights - thicknesses) available
Accessories:
Cargo tracks, wear plate, lashing bars, inserts for fixation of accessories, handles, belts (for closing), blocking bolts, gas spring systems, etc.
Door:
With or without door.
Structure:
Fixed, movable or tiltable.
Custom-made:
Consult us for your very own special application
Application fields:
Perfect solution for truck bodies for refrigerated and deepfreeze transport requiring multiple temperature compartments.

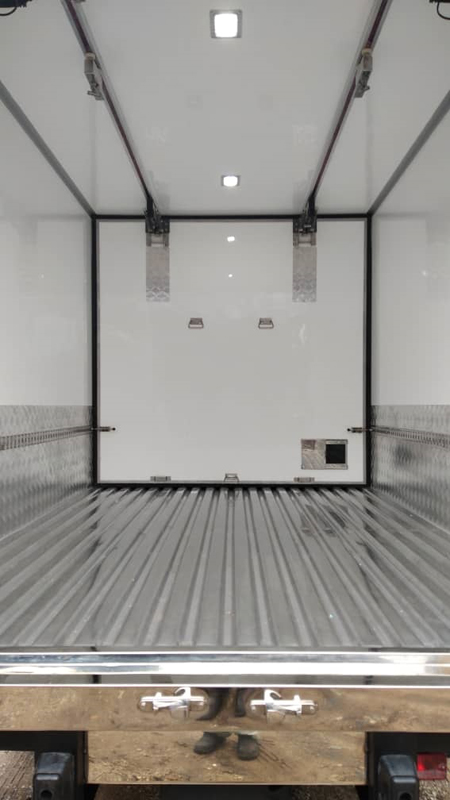

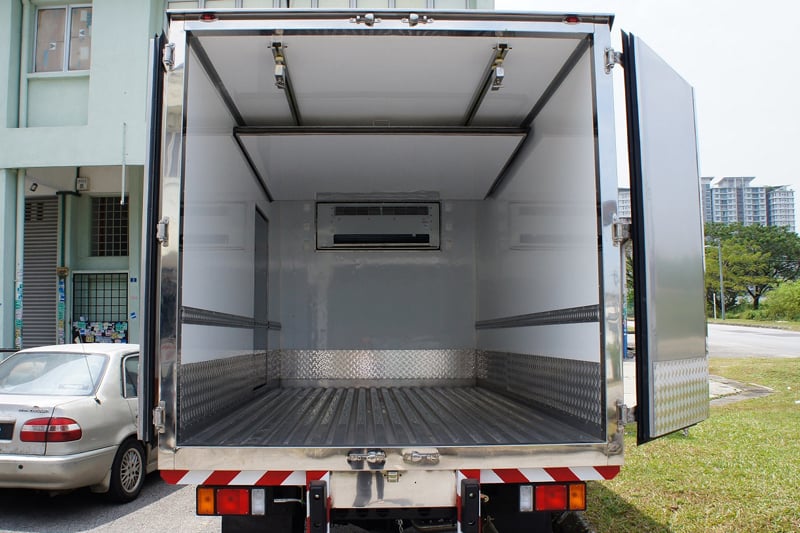

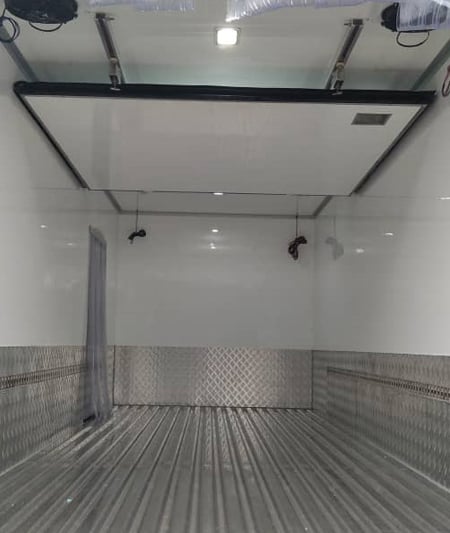

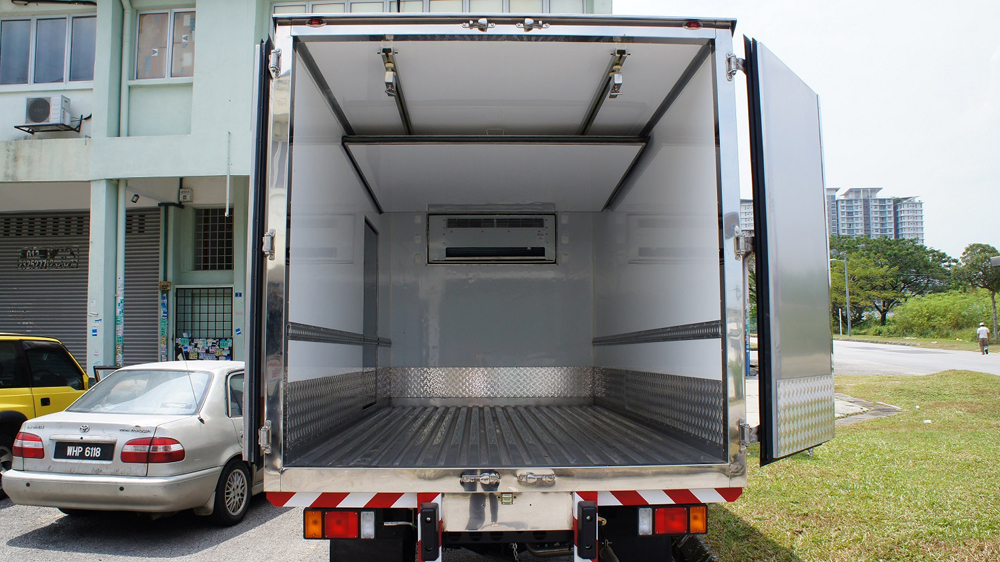

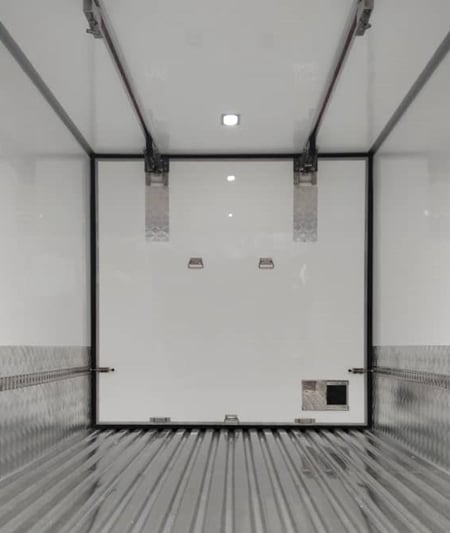

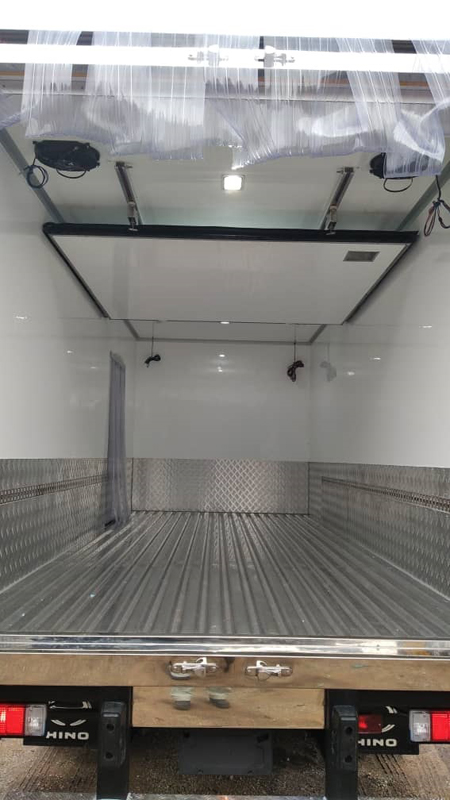

Movable Partitions
Specifications:-
Wall Thickness:
75mm
Insulation:
XPS
Partition Type:
Wall with gas spring lifting arm sets.
Accessories:
Heavy-duty aluminum alloy u-rail, stainless steel stowing devices, spring loaded bolts, stainless steel drop-chest handles, zinc- plated steel multi-holes cargo track fitted in LH & RH top internal wall, Gasket.
DSC04542 20140212_124551_resized DSC04549 DSC04553 DSC04554 DSC04557 picture galleries for websitesby VisualLightBox.com v6.0
Tiltable Partition
Specifications:-
Wall Thickness:
25mm
Insulation:
XPS
Wall Type:
Two pieces of portable bulkhead.
Accessories:
Cargo Tracks, Door Handles, Spring Loaded Bolts, Stainless Steel Bar, Gasket.
Lift Up Partition with Cargo Track (3) Lift Up Partition with Cargo Track (2) picture galleries for websitesby VisualLightBox.com v6.0

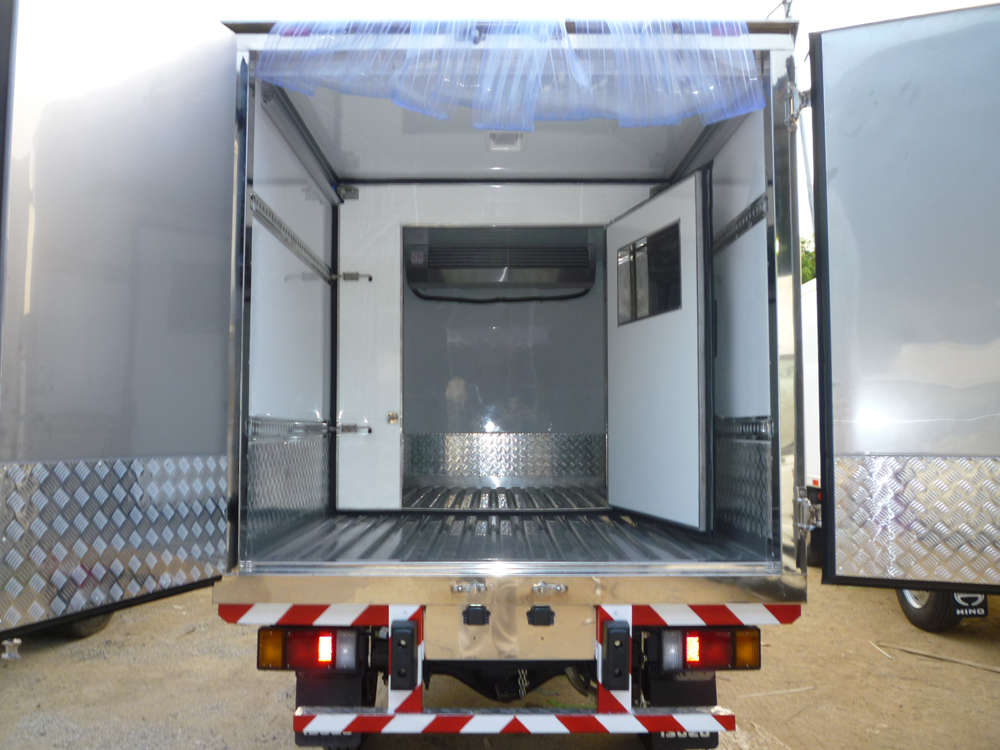

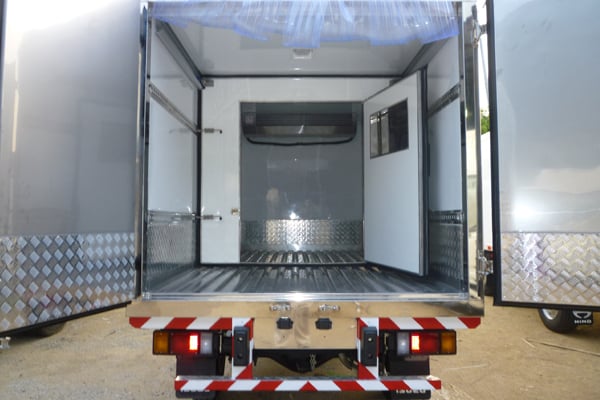

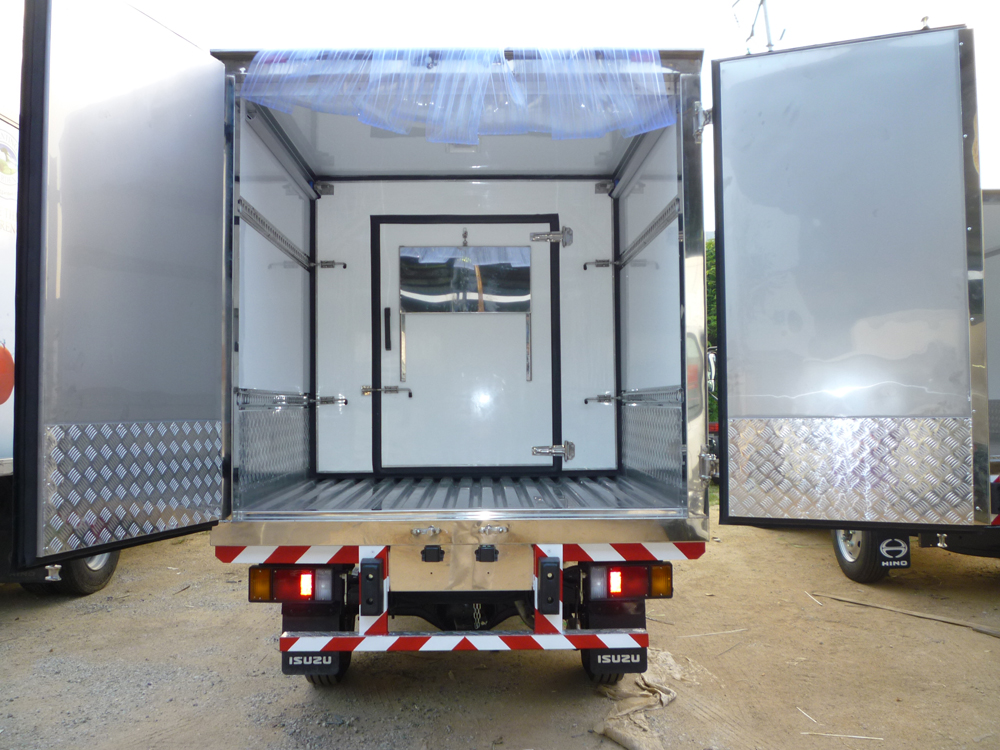

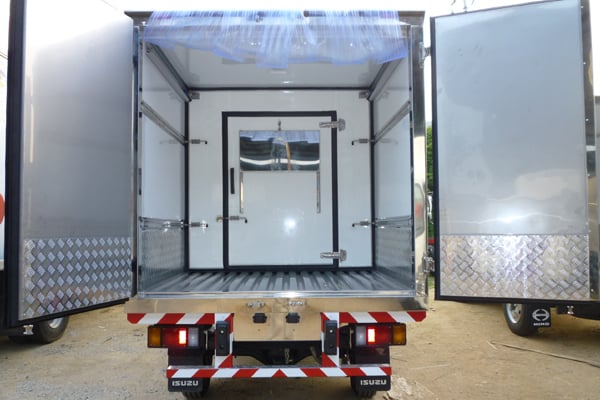

Movable Partition with double hinged swing door
Specifications:-
Wall Thickness:
75mm
Insulation:
XPS
Door Types:
Swing door with double stainless steel door hinges
Accessories:
Door Handles, Stainless Steel Spring loaded bolts & insulated 50x50 SS SHS door frame with movable assy, Red Rubber Stopper, Cargo Tracks, Gasket.
DSC04978 Movable P MP P1010211 P1010220 P1010223 picture galleries for websitesby VisualLightBox.com v6.0

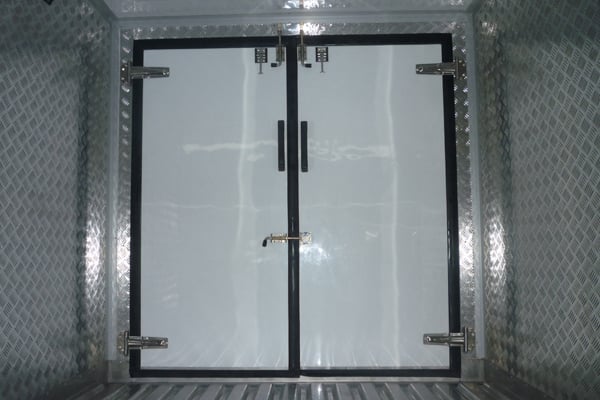

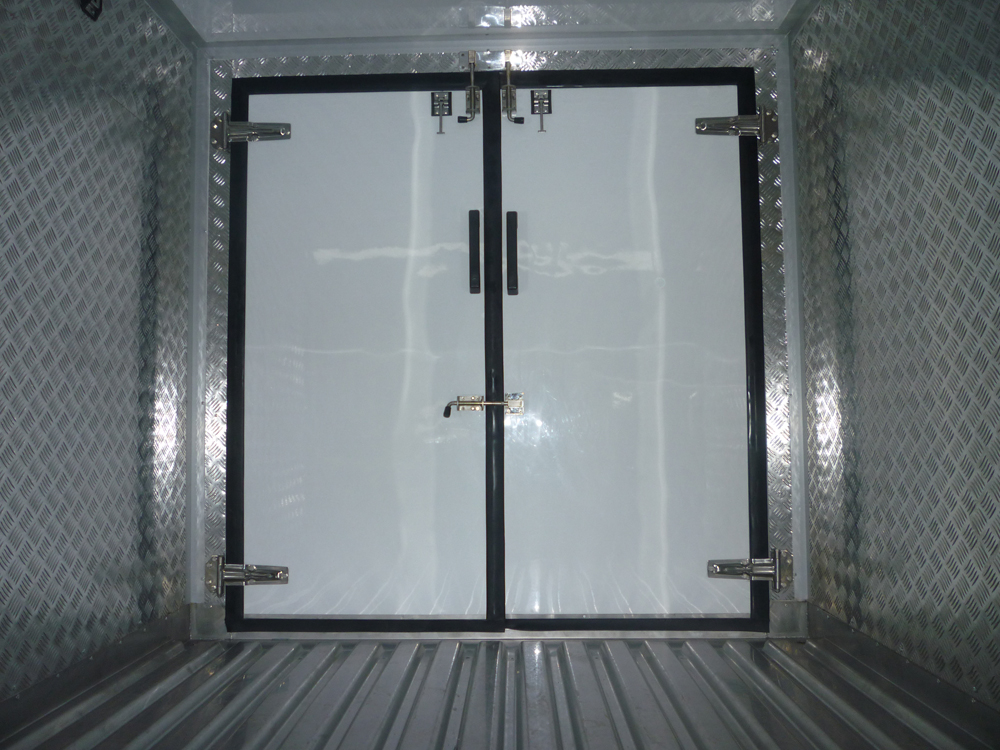

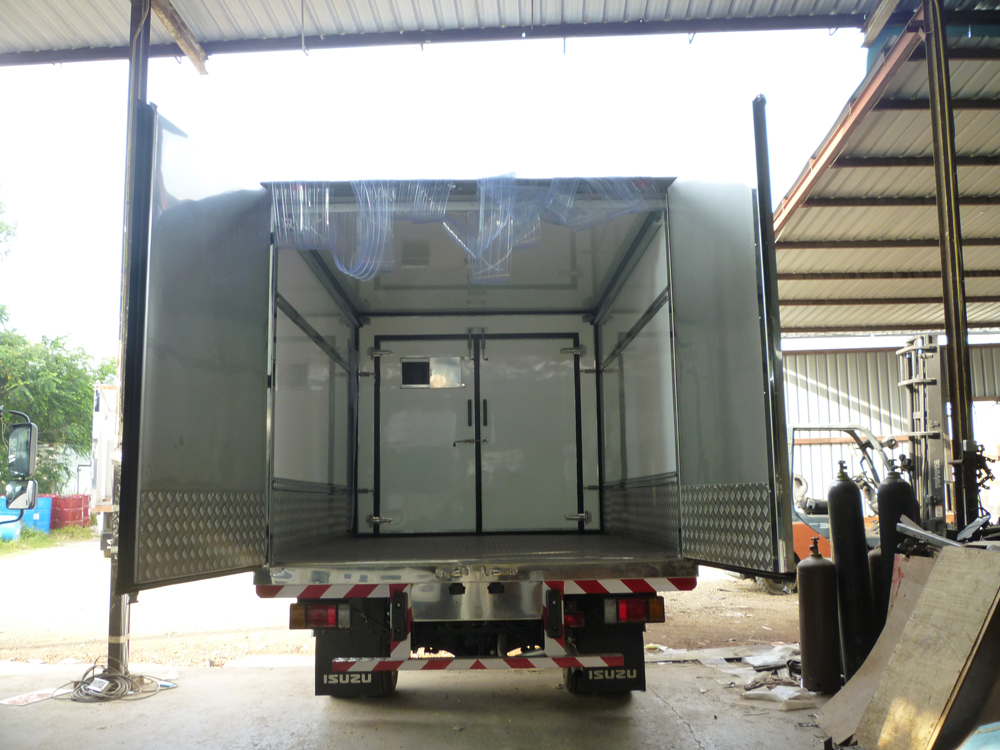

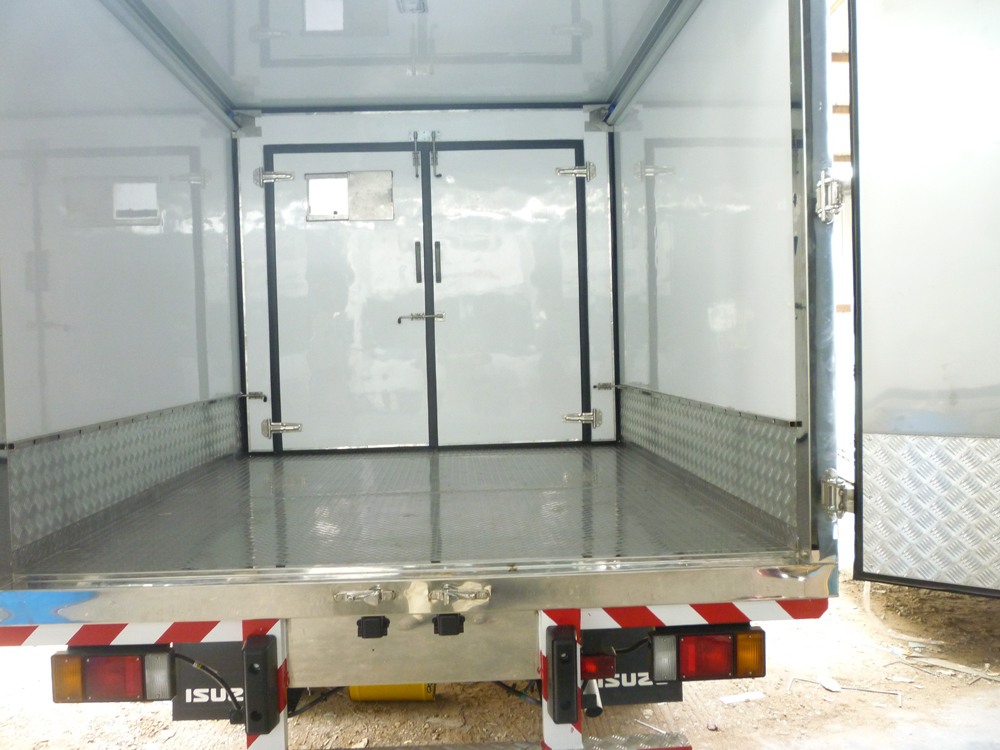

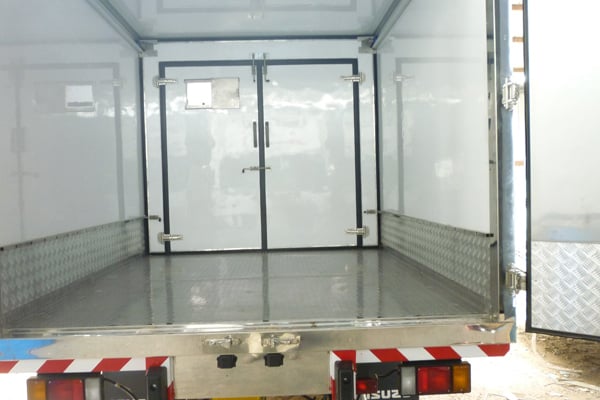

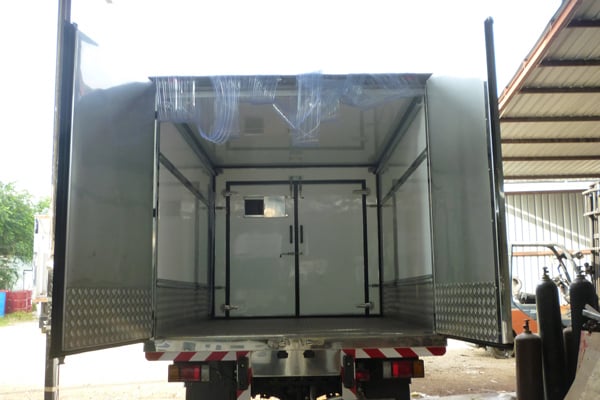

Movable partition with butterfly door
Specifications:-
Wall Thickness:
75mm
Insulation:
XPS
Door Type:
Butterfly Door Type
Accessories:
Door Handles, Stainless Steel Spring loaded bolts & insulated 50x50 SS SHS door frame with movable assy, Red Rubber Stopper, Cargo Tracks, Stainless Steel adjust bolt & nylon wheel bearing, Gasket.
20140225_110240 DSC04976 DSC04974 20140519_140852 picture galleries for websitesby VisualLightBox.com v6.0

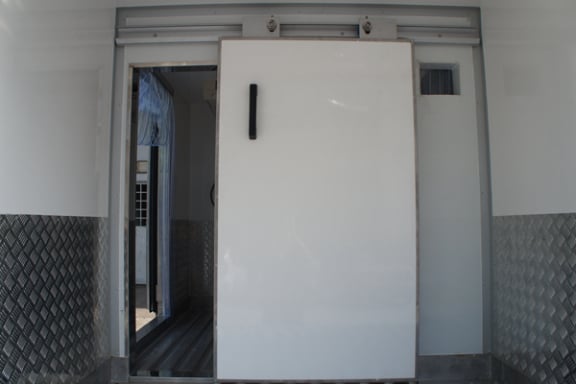

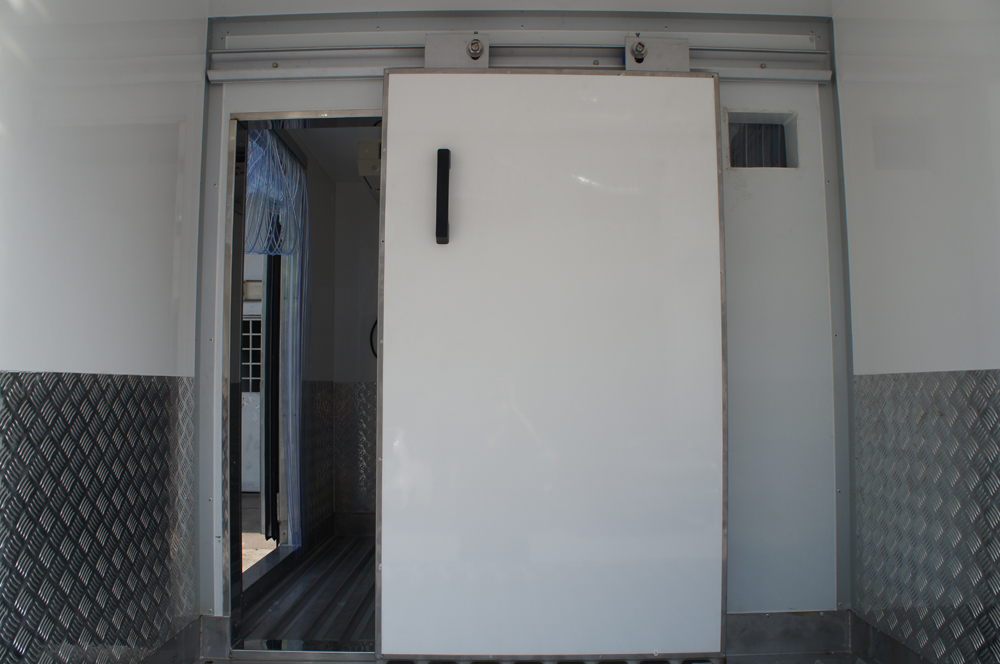

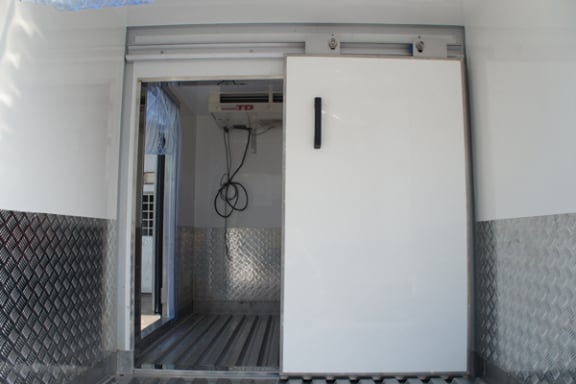

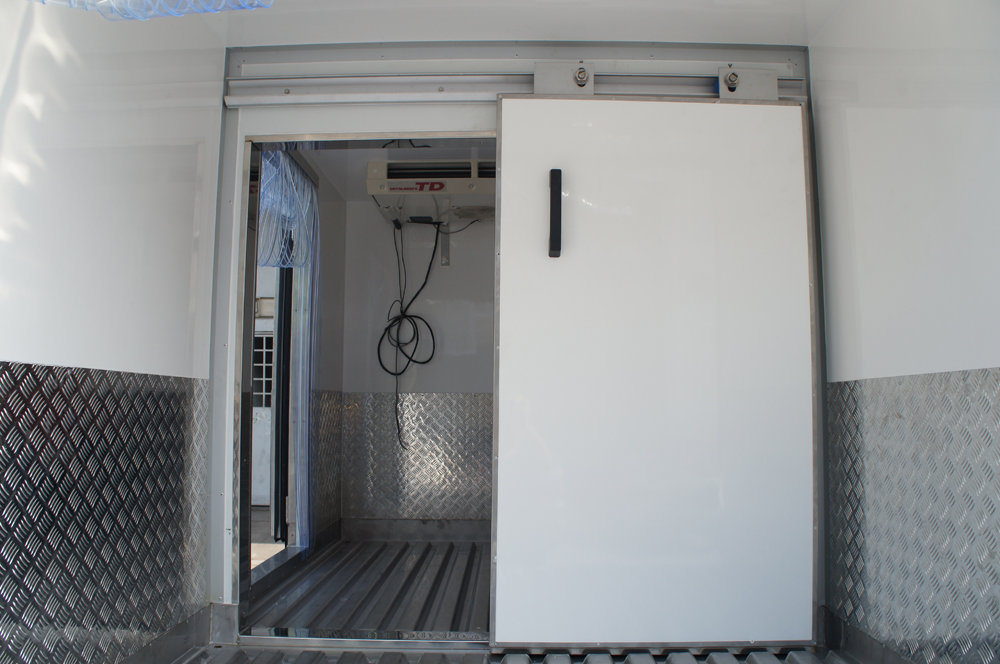

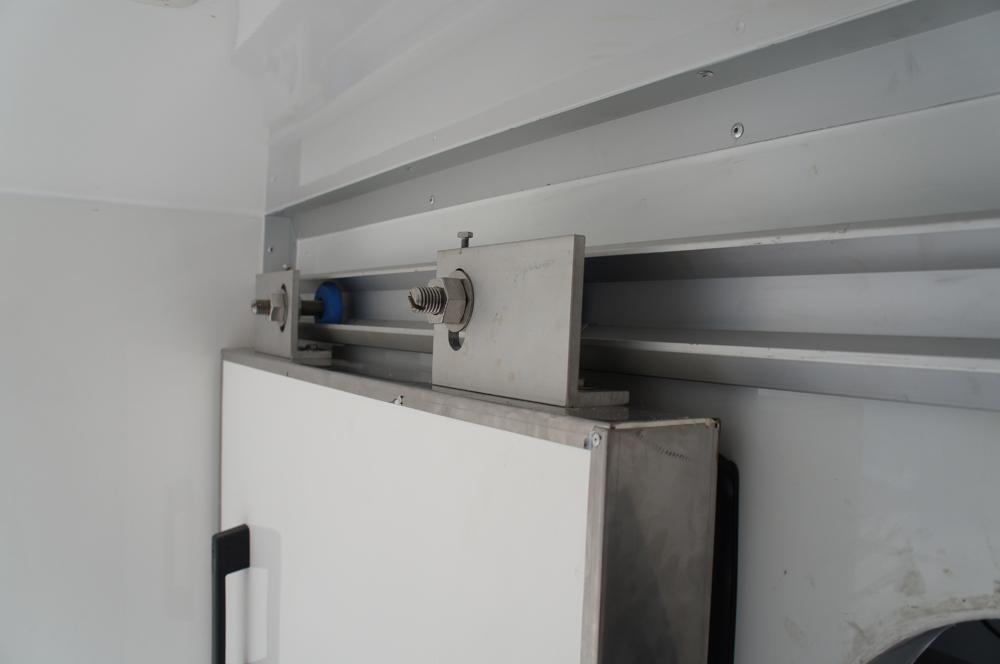

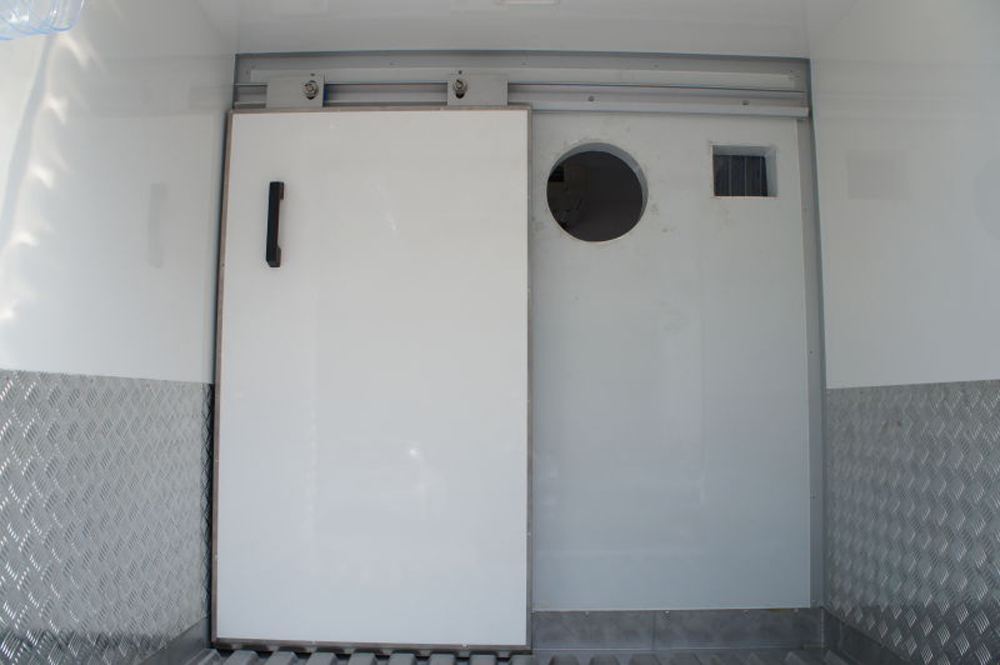

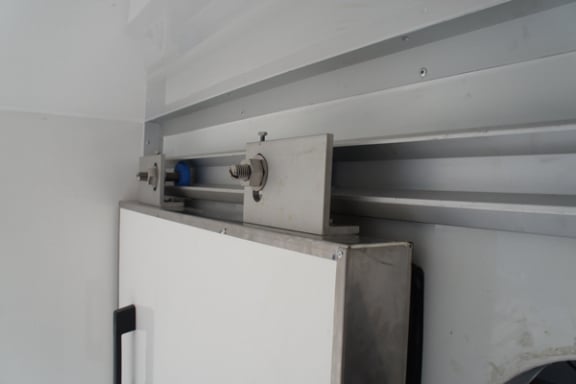

Fix Partition with manual sliding door
Specifications:-
Wall Thickness:
75mm
Insulation:
Extruded Polystyrene (XPS)
Door Type:
Manual Sliding Door (Slide from LH to RH)
Accessories:
Door Handles, Aluminum Alloy U-Rail, Stainless Steel Door Latch, Door Bracket, Stainless Steel adjust bolt & nylon wheel bearing, Gasket.
DSC04949 DSC04950 DSC04952 DSC04955 DSC04957 DSC04959 picture galleries for websitesby VisualLightBox.com v6.0
Fix Partition Wall with Butterfly-Type Door
20141205_114431 20141215_134134 picture galleries for websitesby VisualLightBox.com v6.0
Fix Partition Wall
Fix Partition Plain picture galleries for websitesby VisualLightBox.com v6.0
